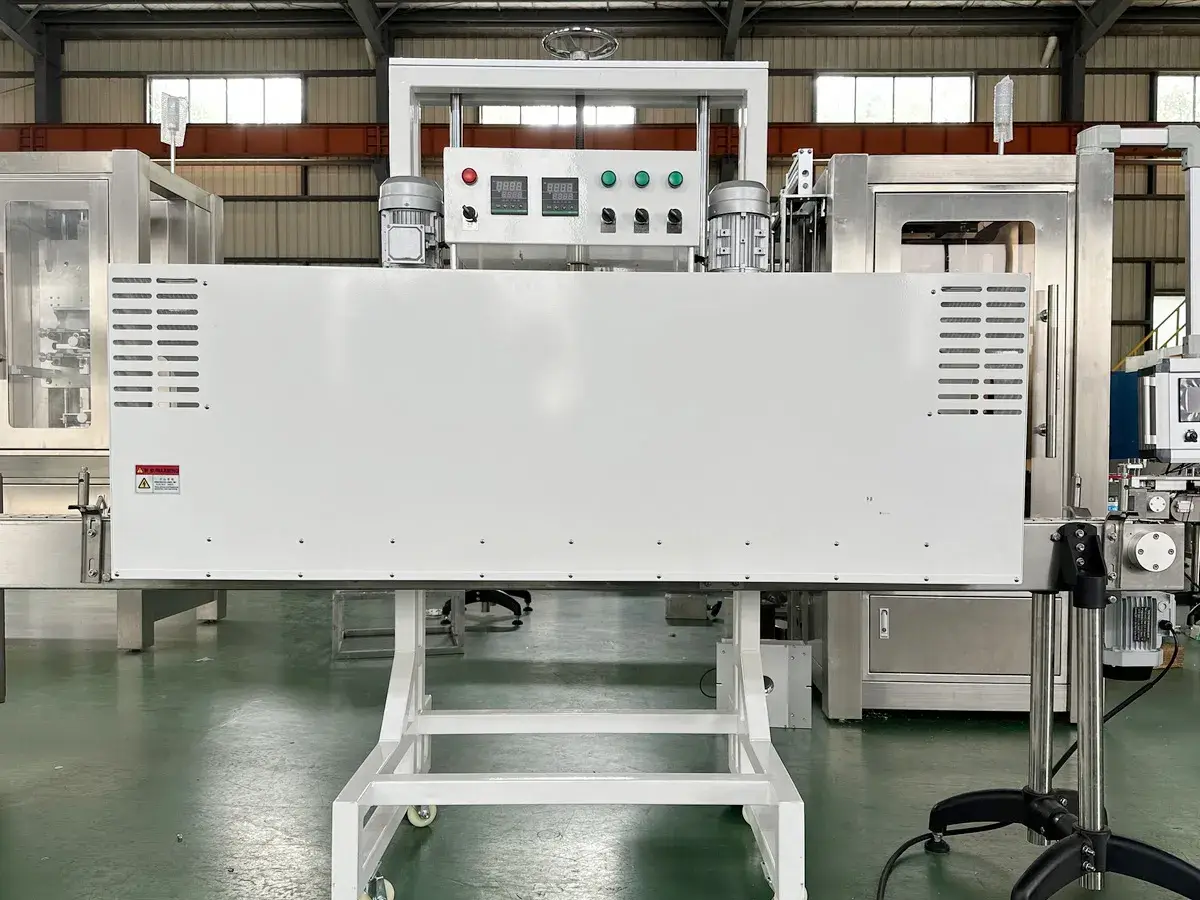

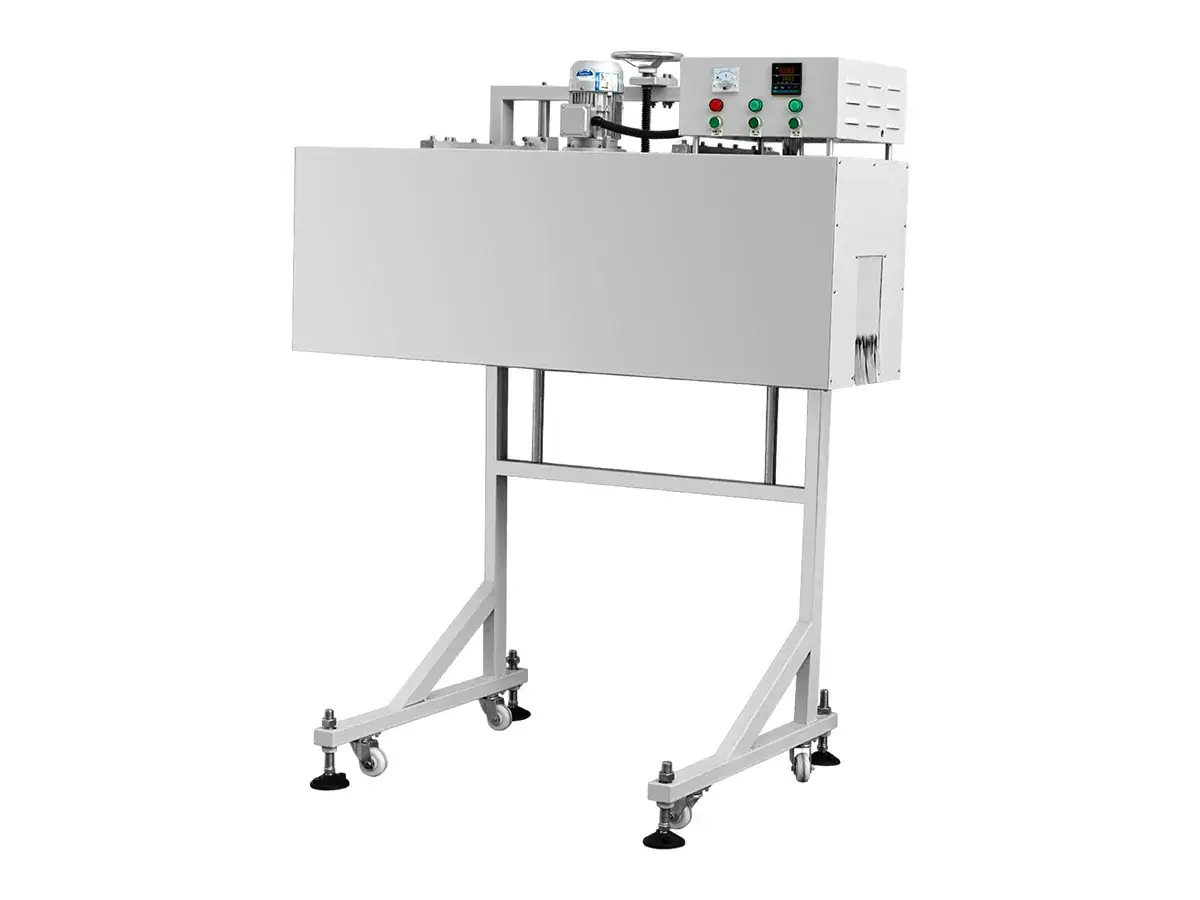

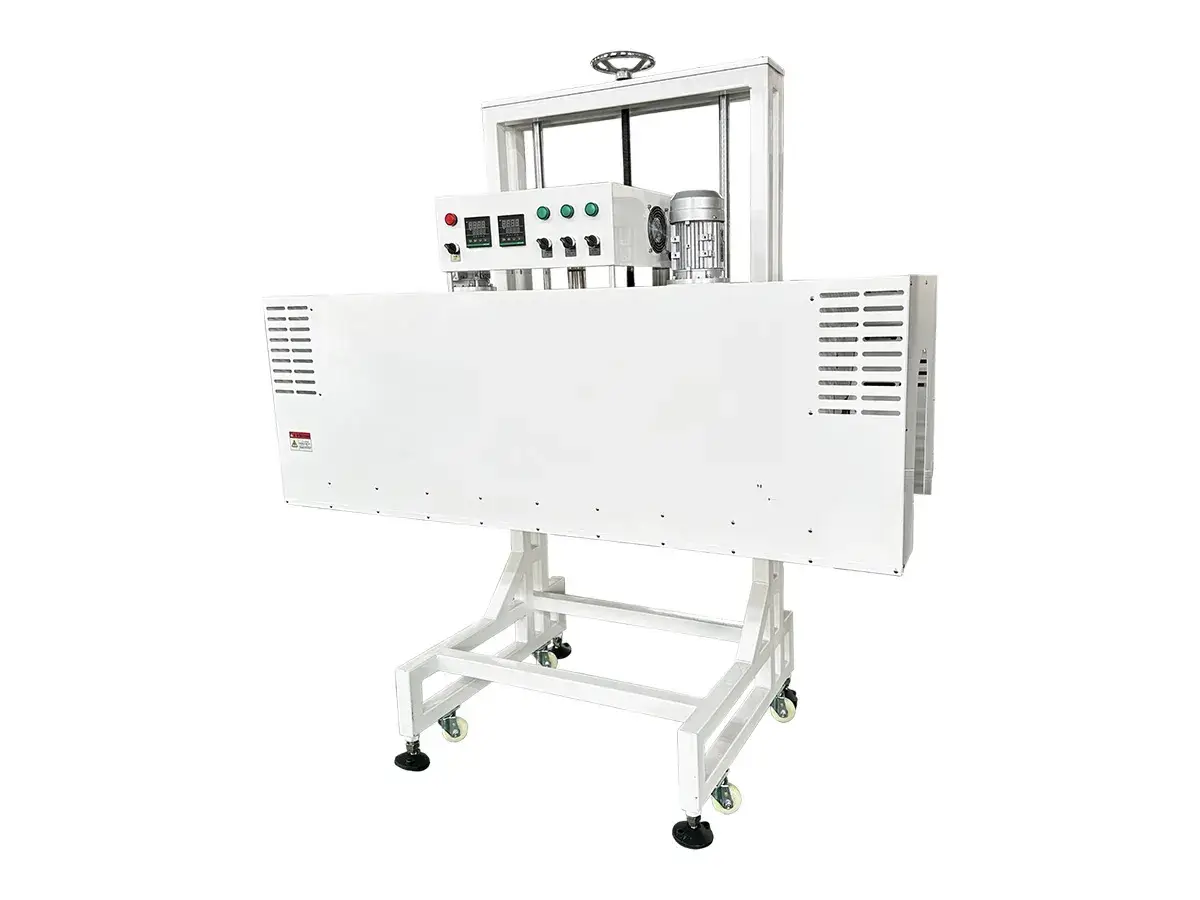

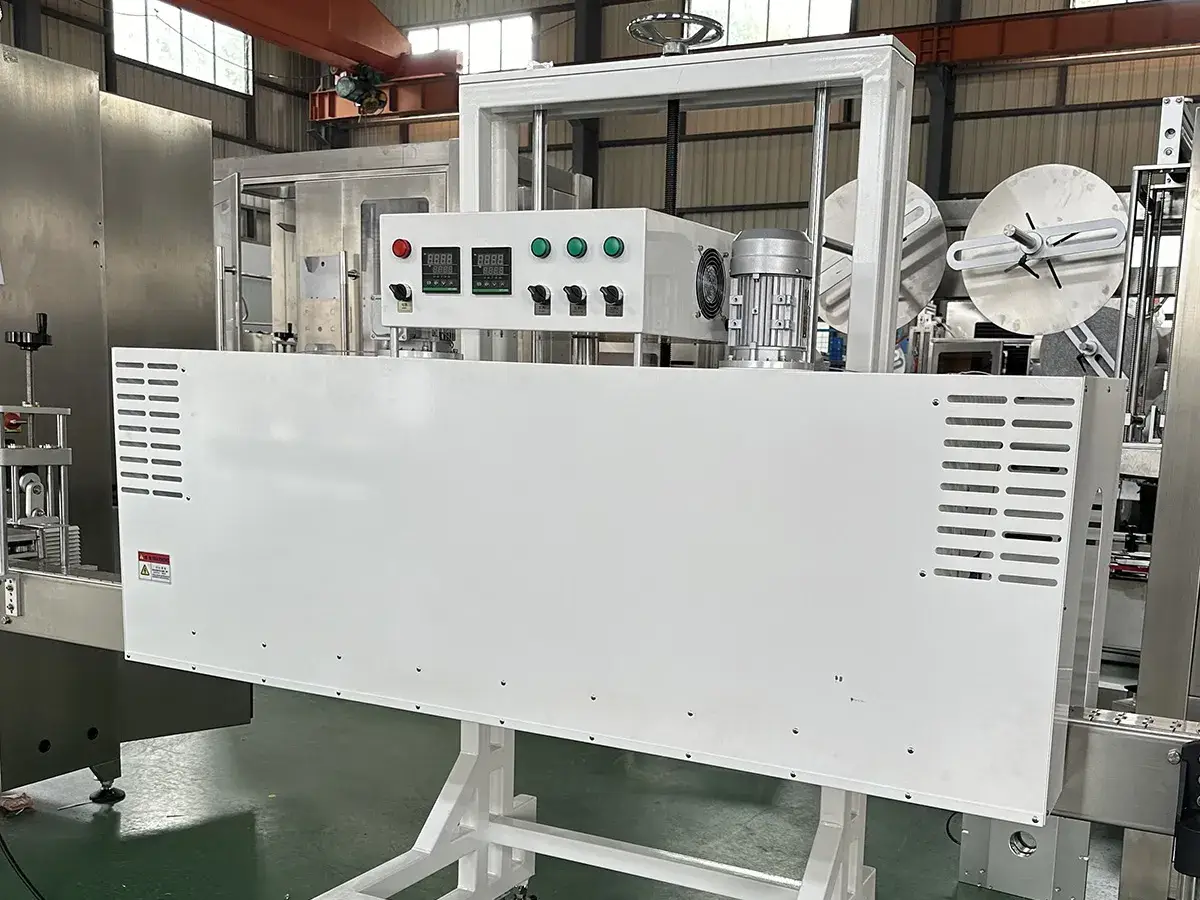

SR-H1000 / H1500 / H1800 Electric Heat Tunnel, Single Zone Shrink Tunnel
Single zone electric heat shrink tunnels complete the sleeve shrinking process after labels are applied to containers. Electric heating elements and hot air circulation provide stable heat inside the tunnel, which allows PVC, POF, PE, PP and OPS shrink films to contract evenly and fit closely around different container shapes. These hot air shrink tunnels have a single heating zone that offers stable shrink performance for common packaging applications in food, beverage, personal care and pharmaceutical industries.
- Bottles and jars
- Food and beverage containers
- Personal care and household product packaging
- Pharmaceutical and healthcare products
- Multipack products with shrink sleeve wrapping
| Model | |
|
|
| Machine Dimensions | 1000 × 500 × 600 mm | 1500 × 500 × 600 mm | 1800 × 500 × 600 mm |
| Fan Motor Power | 7.2 kW | 14.4 kW | 19.2 kW |
| Power Supply | 220–380 V, 3 Phase, 50–60 Hz | ||
| Construction Material | SUS304 Stainless Steel with Spray-Painted Finish | ||
| Net Weight | 200 kg | 250 kg | 280 kg |
-
Heating Unit
Electric heating elements with independent temperature control provide stable heat throughout the tunnel chamber.
-
Hot Air Circulation System
The internal airflow design distributes heat evenly across the sleeve surface for consistent shrinking results.
-
Conveyor System
Variable-speed mesh belt or chain conveyors handle different container sizes and maintain smooth product movement through the tunnel.
-
Insulation System
Insulated panels reduce heat loss from the chamber and create a safer operating environment.
-
Machine Frame
SUS304 stainless steel construction offers good corrosion resistance and simplifies cleaning and maintenance.
