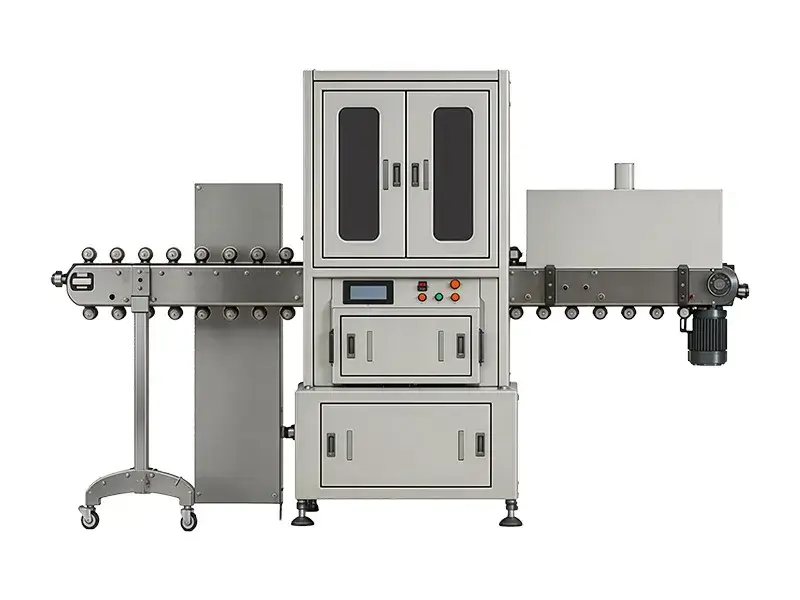

SRL-H80 Horizontal Shrink Sleeve Applicator
Horizontal sleeve labelers are suitable for small bottles, cosmetic tubes and other narrow products that are difficult to transport upright. The products are carried on their side while the machine pulls shrink film from a roll, cuts it to the required length and places a sleeve over each one. They then move into a heat or steam tunnel, where the film shrinks around the container.
- Maximum Speed: 4,800 pcs/h
- Sleeve Length: 20–350 mm
- Shrink Film Materials: PVC, PET, OPS
- Machine Construction: SUS304 stainless steel
Applications
- Cosmetics and personal care
- Pharmaceutical and healthcare
- Household products
- Food and beverage
Technical Specifications
| Left Feed Capacity | Label Length | 20–350 mm |
| Labeling Speed | 4800 pcs/h | |
| Label Material | PVC / PET / OPS | |
| Label Thickness | 0.03–0.13 mm | |
| Sleeve Circumference Requirement | Label circumference ≤ Product circumference 4 mm | |
| Qualified Product Rate | 99.9% | |
| Label Cutting Straightness | ±0.1 mm | |
| Label Shrinkage Deformation | ±0.5 mm | |
| Machine Dimensions | 4000 × 1600 × 1700 mm | |
| Machine Weight | 750 kg | |
| Power Supply | 3 Phase 380V, 50/60Hz (Customizable) | |
| Total Power Consumption | 3 kW (Excluding shrink tunnel power) | |
Highlights
- Horizontal conveyor for small and narrow products
- Quick adjustment for different product sizes and sleeve lengths
- PLC touchscreen with saved product settings and fault display
- Optional vision inspection for sleeve position and cut quality
- Compatible with PVC, PET, OPS shrink films
- Structure made of SUS304 stainless-steel
- Safety guards and emergency stop button
- Low-noise operation and GMP-compliant design
How the Sleeving Process Works
- Products enter the shrink label applicator in a horizontal position
- Shrink film is unwound and fed through the cutting system
- The film is cut to the selected sleeve length
- Individual sleeves are placed over the products
- The sleeved products are transferred to the downstream shrink tunnel
Features
- Horizontal shrink sleeve applicators have horizontal conveyors that provide stable support for narrow and small-diameter products that are difficult to transport upright.
- They can be quickly adjusted for different product sizes and sleeve lengths, reducing setup time during product changeovers.
- Product settings can be saved and recalled through the PLC touchscreen, where operators can also set parameters, check operating status, identify faults and view production data.
- An optional vision inspection system can detect incorrect sleeve placement and uneven cuts during production.
- Can process PVC, PET, OPS shrink films for different products and packaging requirements.
- They are made of SUS304 stainless steel and include safety guards, an emergency stop button and a low-noise design that meets GMP requirements.
