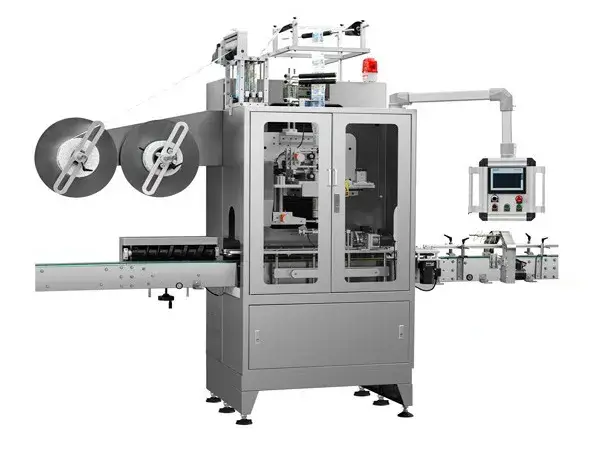

SRL-350 Tamper Evident Band Applicator
Tamper evident band applicators apply heat shrink sleeves around caps, lids and container openings to create security seals that show whether a product has been opened or tampered with. The tubular film is automatically cut into individual bands and positioned on containers before the heat shrinking process fixes the sleeve in place. Besides tamper evident bands, these label applicators also support full-body and partial sleeve applications for round, square and irregular containers, with speeds of up to 21000 containers per hour.
- Max. Speed: 21,000 containers/h
- Container Diameter Range: Ø25–125 mm (Customizable)
- Standard Sleeve Length: Approx. 25–280 mm (Longer lengths require confirmation)
- Shrink Film Materials: PVC, PET and OPS
- Roll Core Diameter: 5"–10"
Request a Quote
Watch Videos

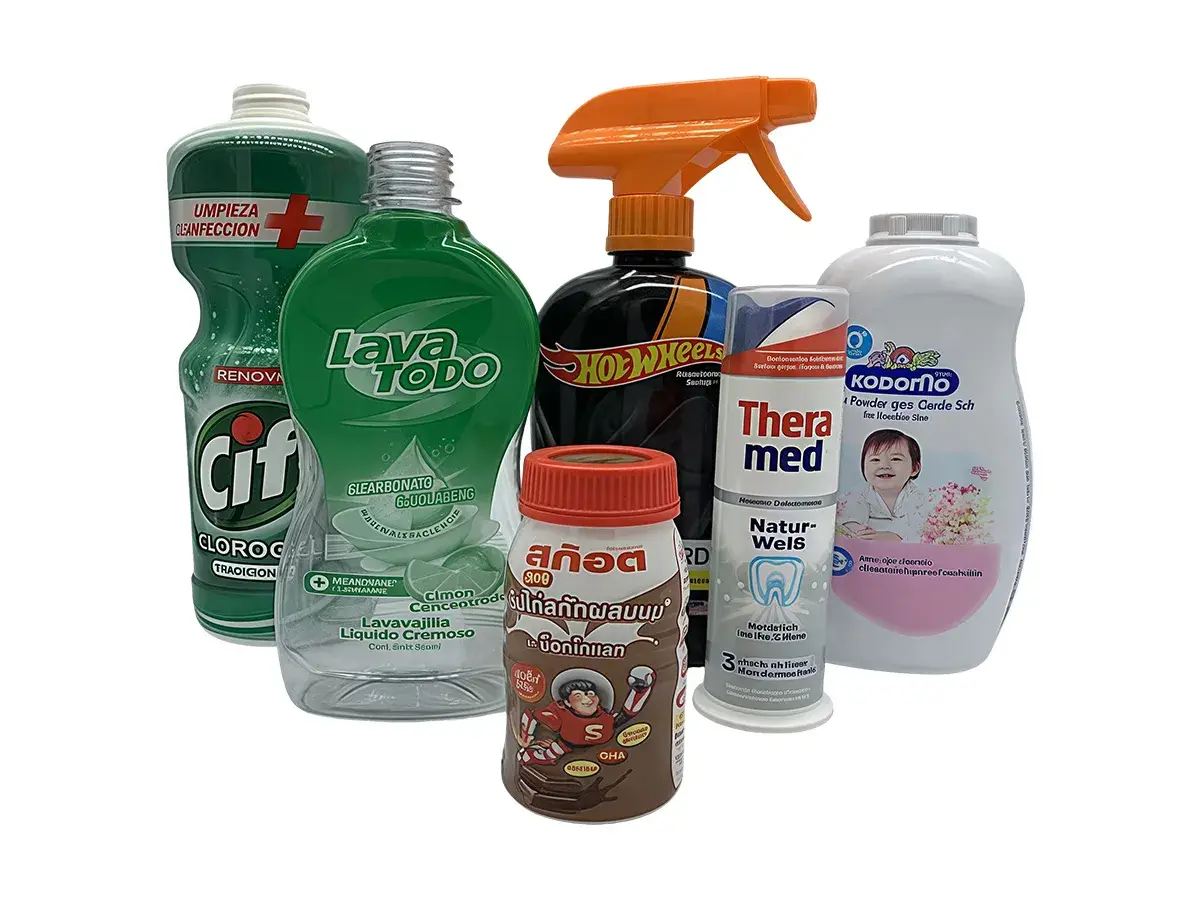

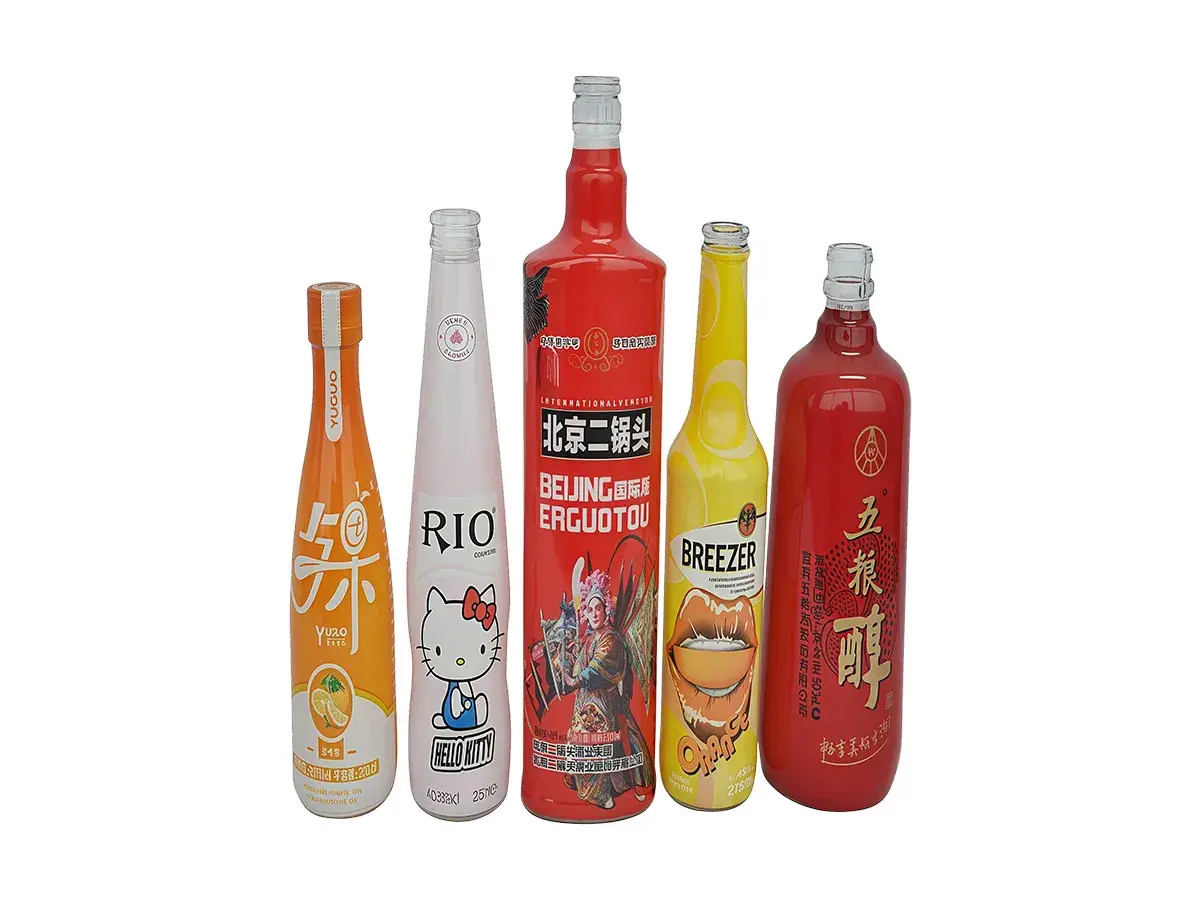

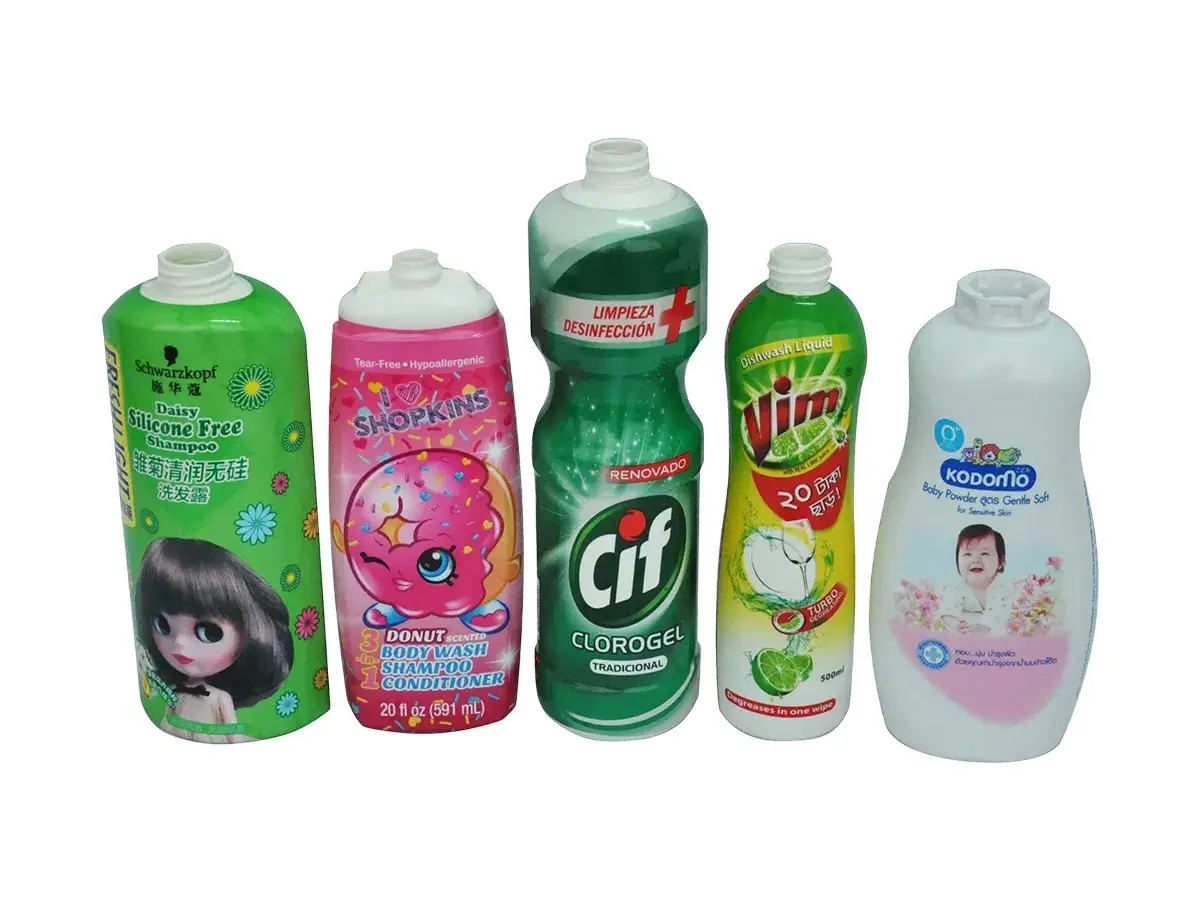

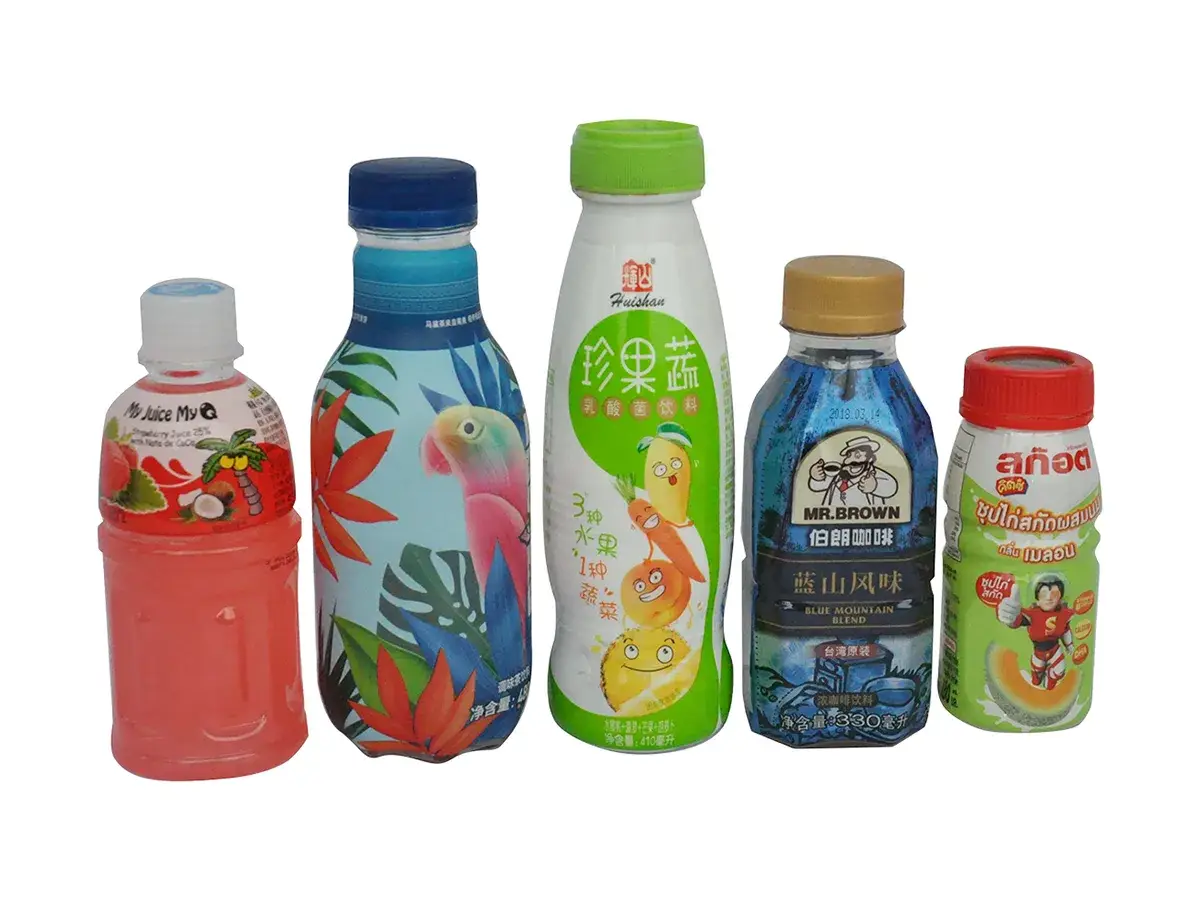

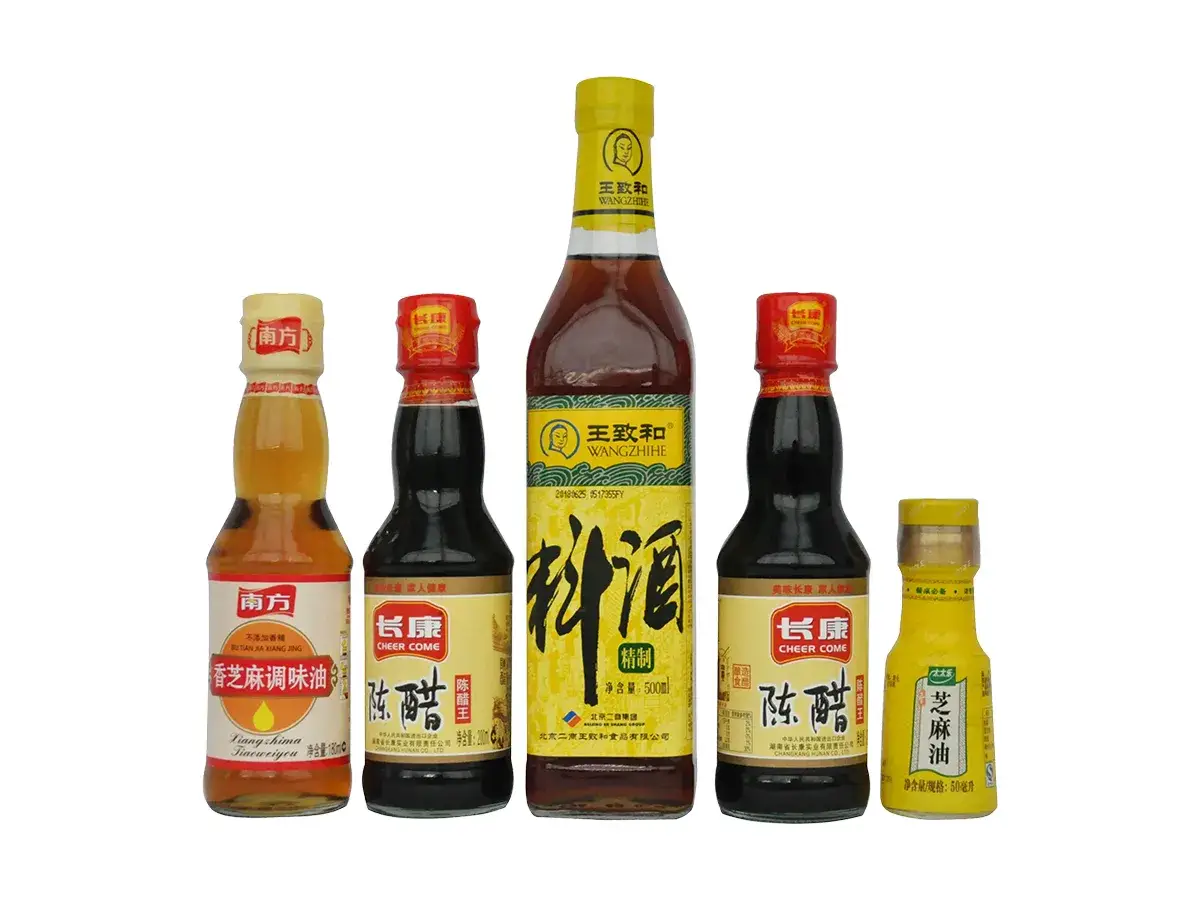

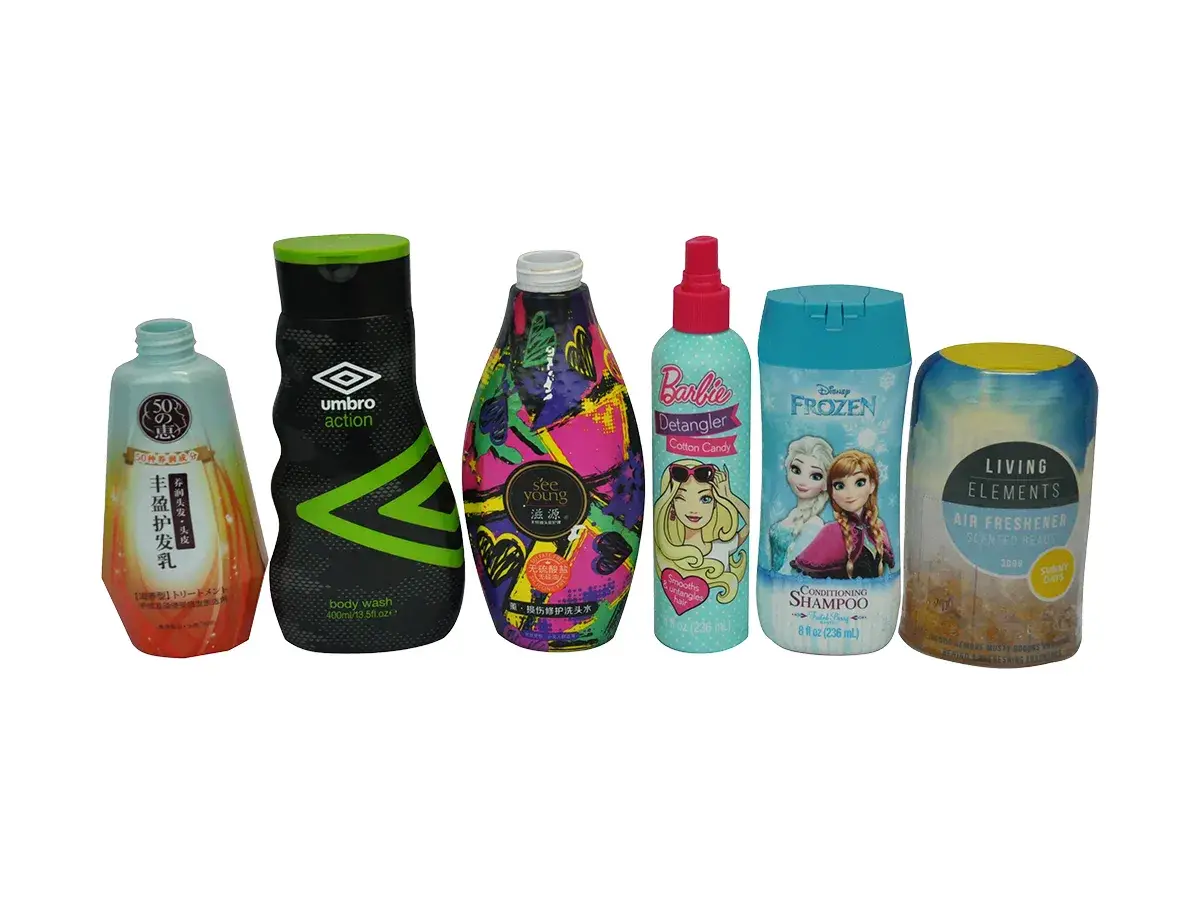

Applications
- Food and beverage products
- Household products
- Pharmaceutical packaging
- Personal care products
- Wine and spirits packaging
Technical Specifications
| Maximum Speed | 21000 containers/h |
| Container Diameter Range | Ø25–125 mm (Customizable) |
| Standard Container Height | Approx. 350 mm (Customizable) |
| Standard Sleeve Length | Approx. 25–280 mm (Longer lengths require confirmation) |
| Cutting Blade Range | Ø25–50 mm / Ø51–95 mm / Ø96–125 mm (Customizable) |
| Sleeve Application Types | Full-body, middle-body, overall, shoulder and cap-seal sleeves |
| Container Materials | PET, PVC, glass, metal, HDPE, PP and PS |
| Shrink Film Materials | PVC, PET and OPS |
| Film Thickness | 0.035–0.080 mm |
| Roll Core Diameter | 5"–10" |
| Voltage | 3-phase, 380 V / 220 V (Customizable) |
| Power Consumption | 4 kW |
| Compressed Air Requirement | None |
| Machine Frame Material | SUS304 stainless steel |
| Machine Dimensions | 1,070 mm (L) × 910 mm (W) × 2,000 mm (H) |
| Net Weight | Approx. 600 kg |
Features
- Tamper evident sleeve labelers can process containers with diameters from 25–125 mm, and special sizes can be customized.
- The main frame and protective parts are made of SUS304 stainless steel, with a 2.5 mm stainless-steel conveyor frame for stable container transfer.
- The labeling head and container spacing unit can be raised or lowered to match containers of different heights.
- The label adjustment unit changes the sleeve angle before application for more accurate positioning.
- Servo motors drive the sleeve brushing and film feeding units, and the display shows the clamping data in real time.
- Two film rollers, damping springs and a buffer system help the film feed more evenly.
- Two photoelectric sensors check sleeve application and trigger an alarm if a problem is detected.
Optional Configurations
-
Container Spacing System
- Independent single-screw system
- Synchronized dual-screw system
- Single-screw system synchronized with the conveyor guides
-
Cutting System
- Conventional multi-blade system (economical option)
- Dual-servo single-blade system (for cleaner, more even cuts)
-
Height Adjustment Control
- Servo motor control
- Standard motor control
Note: Only one configuration can be selected from each category
