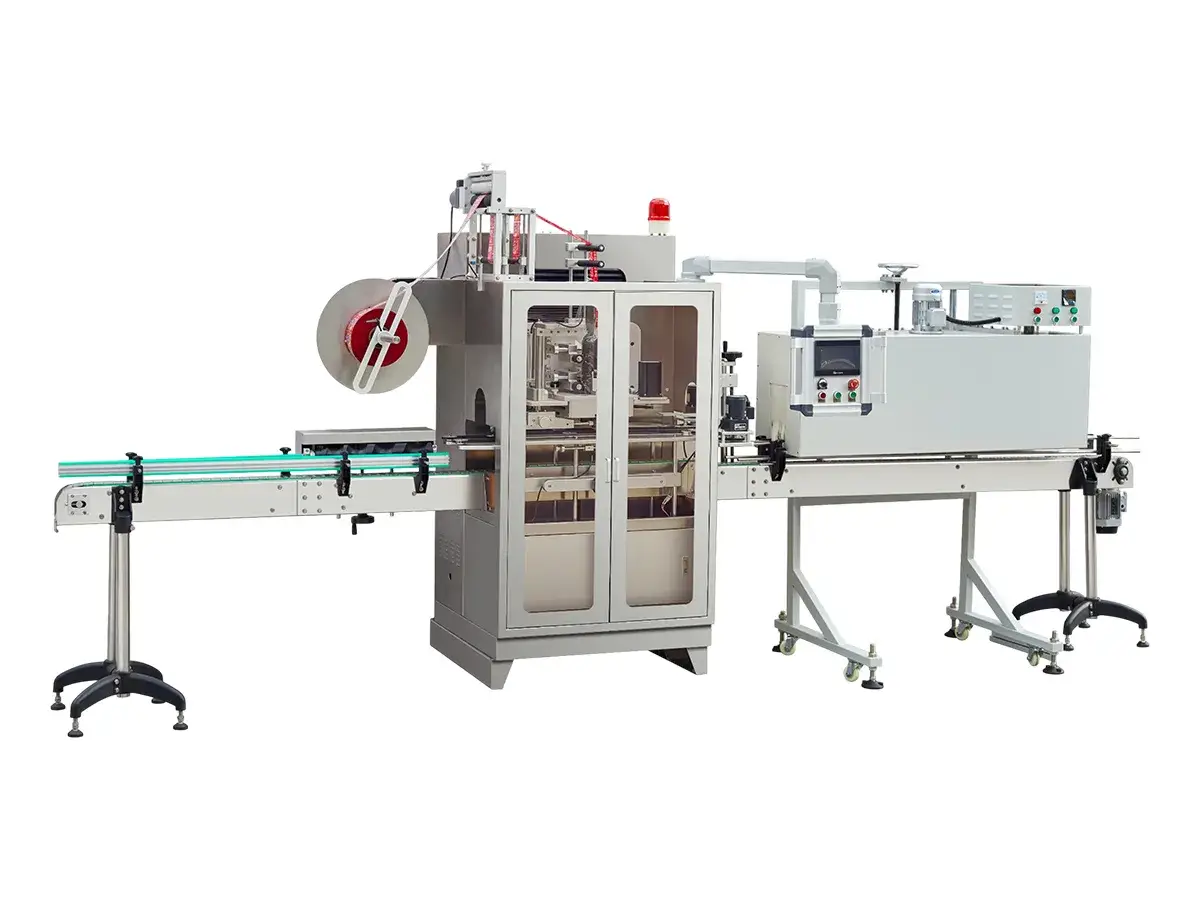

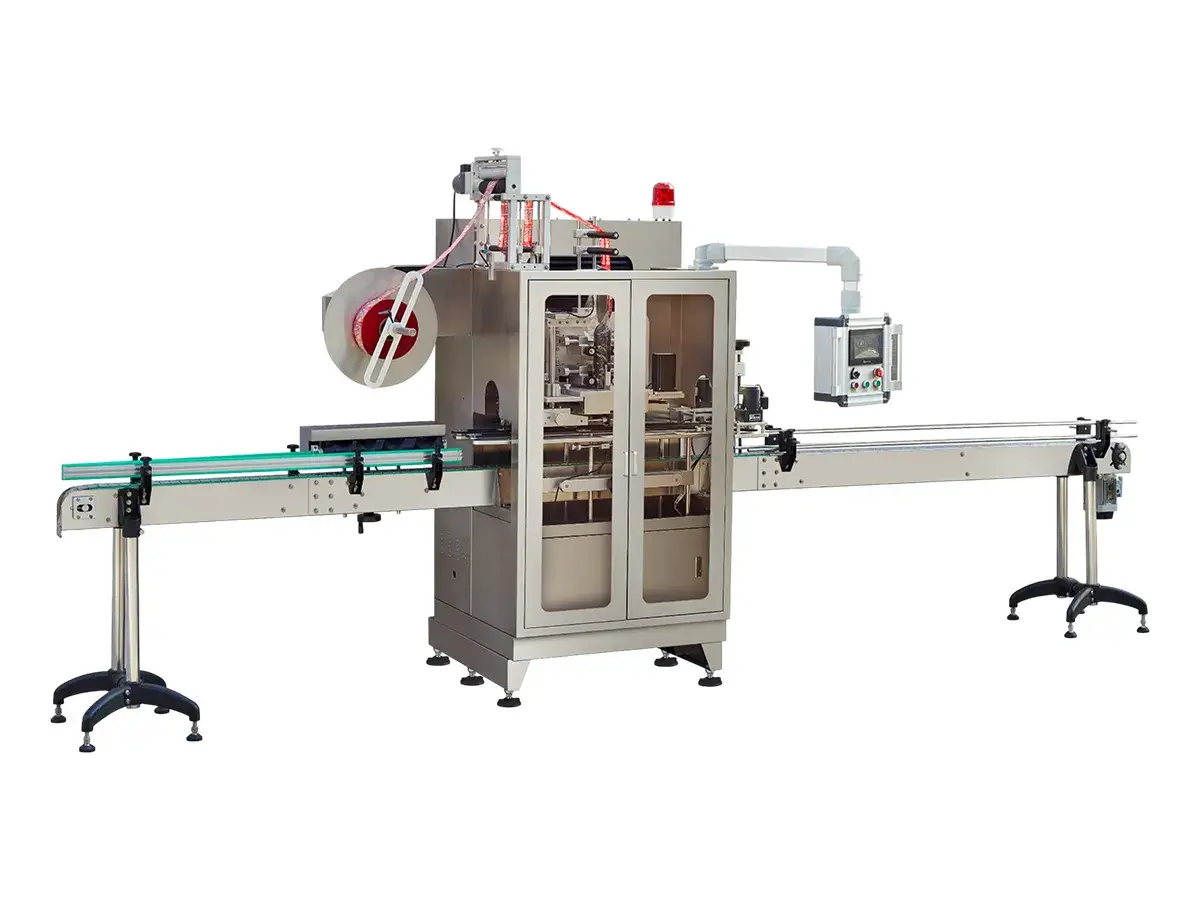

SRL-250 Shrink Sleeve Applicator
These shrink sleeve applicators feed tubular shrink film from a roll, cut it into individual sleeves and place them onto containers before the heat shrinking process fixes the label in position. They handle round, square and irregular containers made of PET, PVC, glass, metal, HDPE, PP and PS, and apply full-body sleeves, partial sleeves and tamper-evident bands at speeds of up to 15000 containers per hour.
- Max. Speed: 15000 containers/h
- Container Diameter: 25–125 mm (Customizable for special sizes)
- Sleeve Applications: Full-body sleeves, partial sleeves and tamper-evident bands
- Compatible Container Materials: PET, PVC, glass, metal, HDPE, PP and PS
- Frame Material: SUS304 stainless steel
Request a Quote
Watch Videos

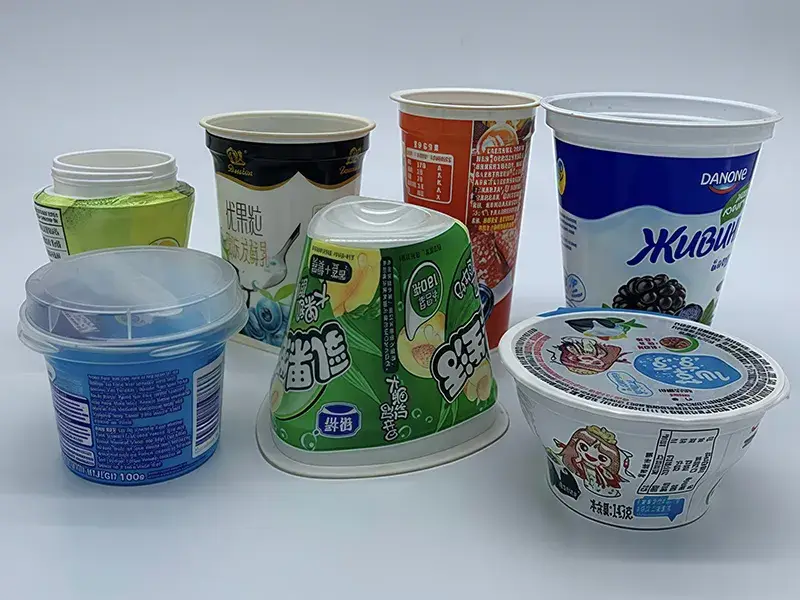

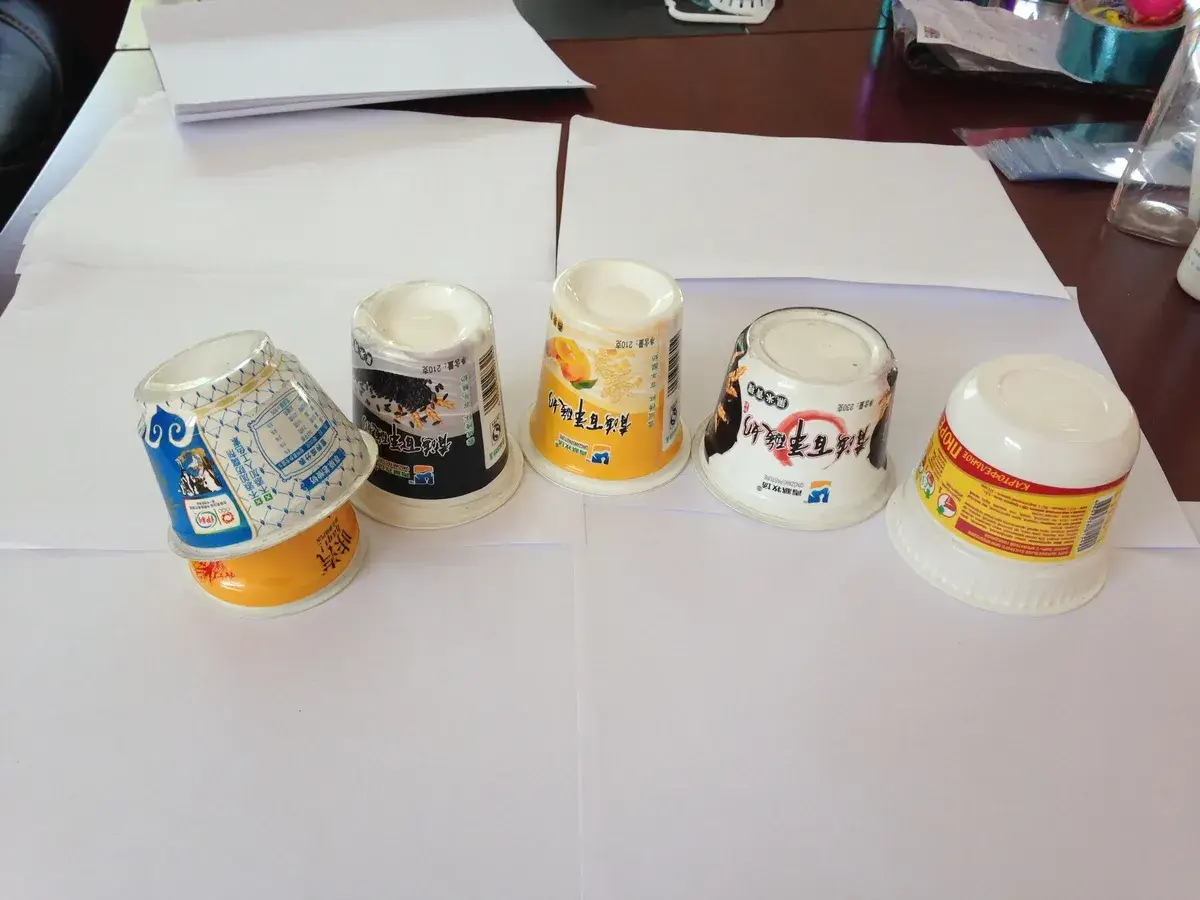

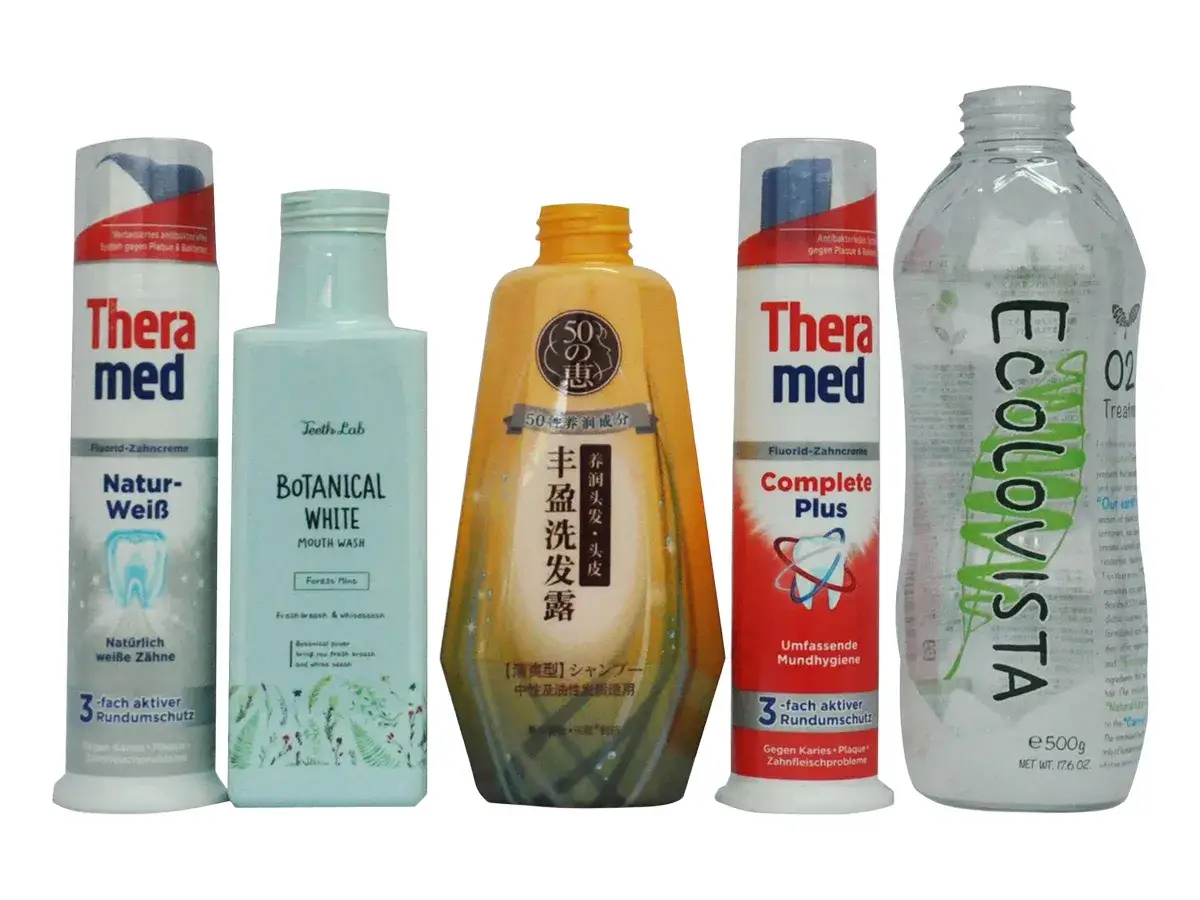

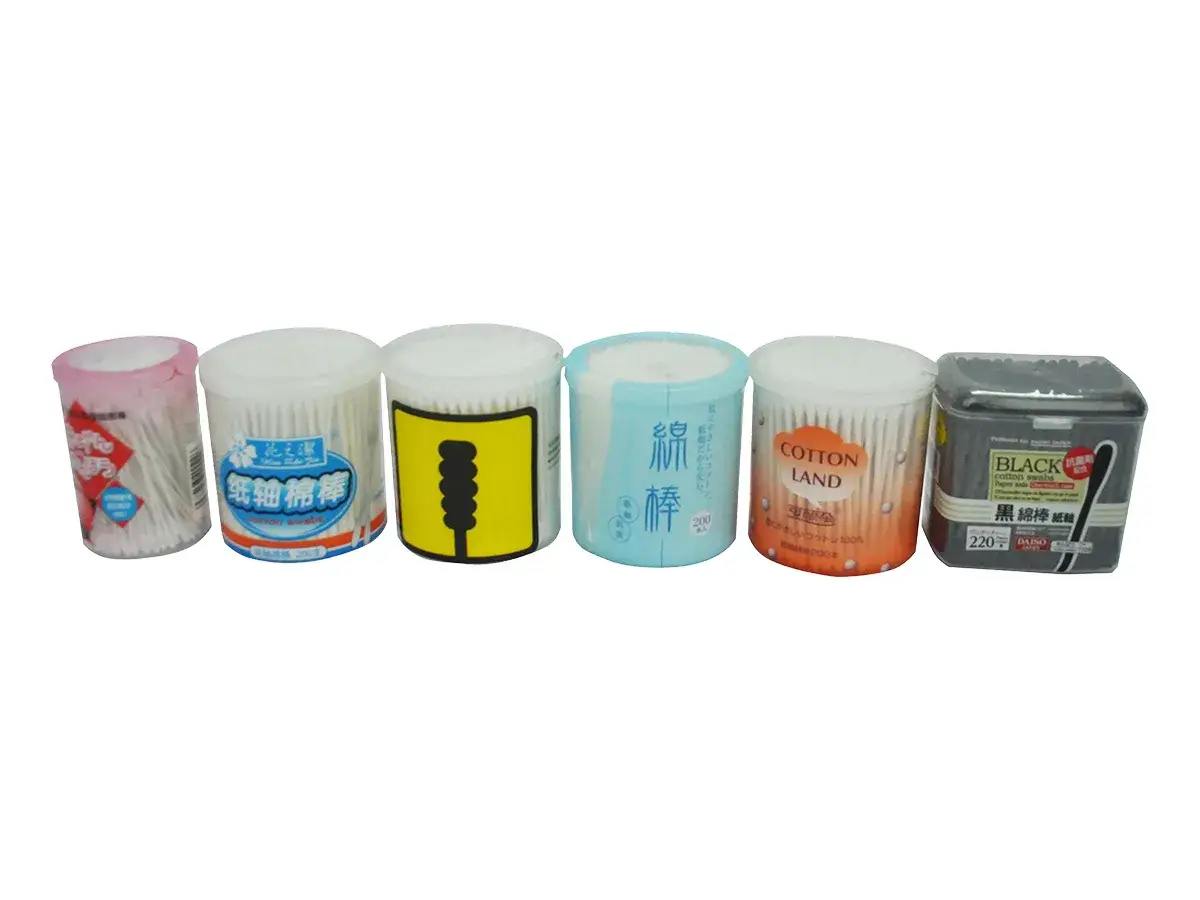

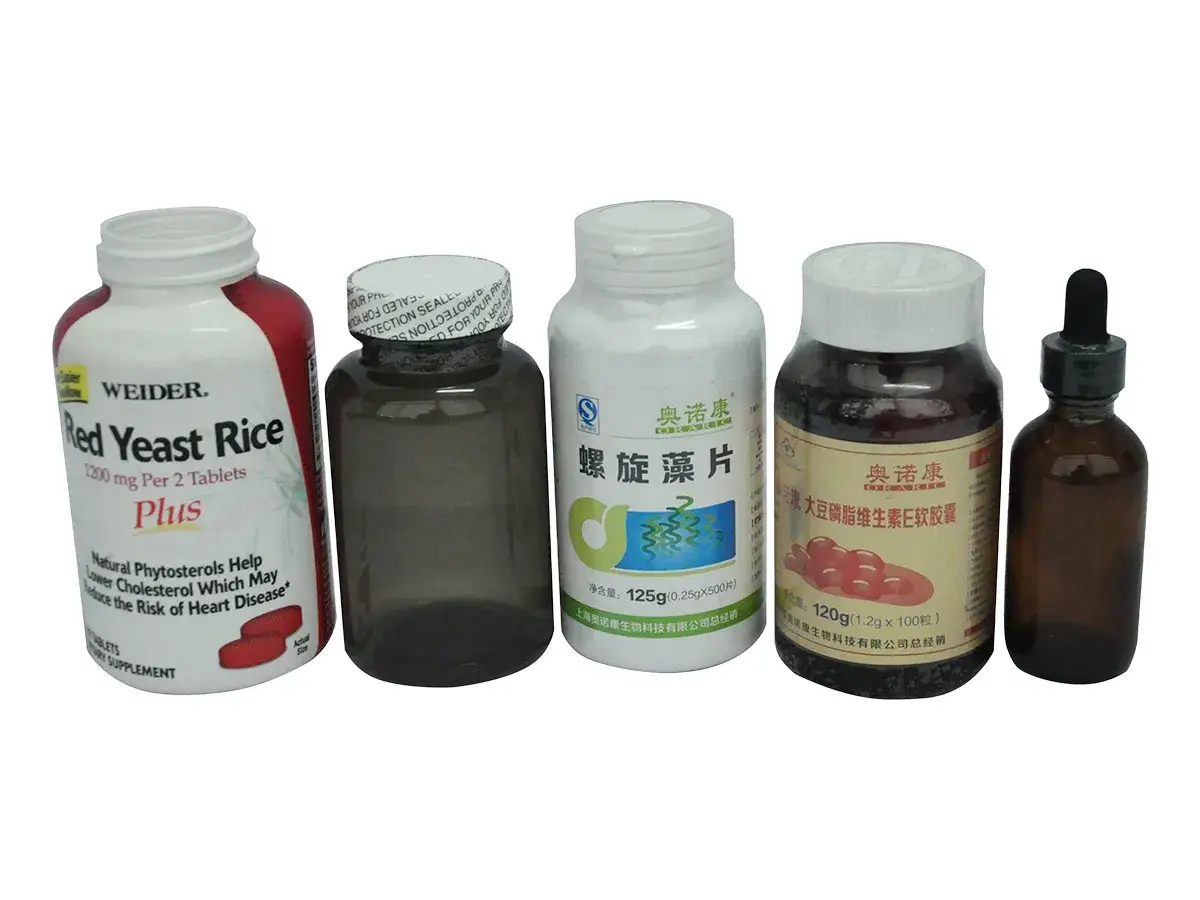

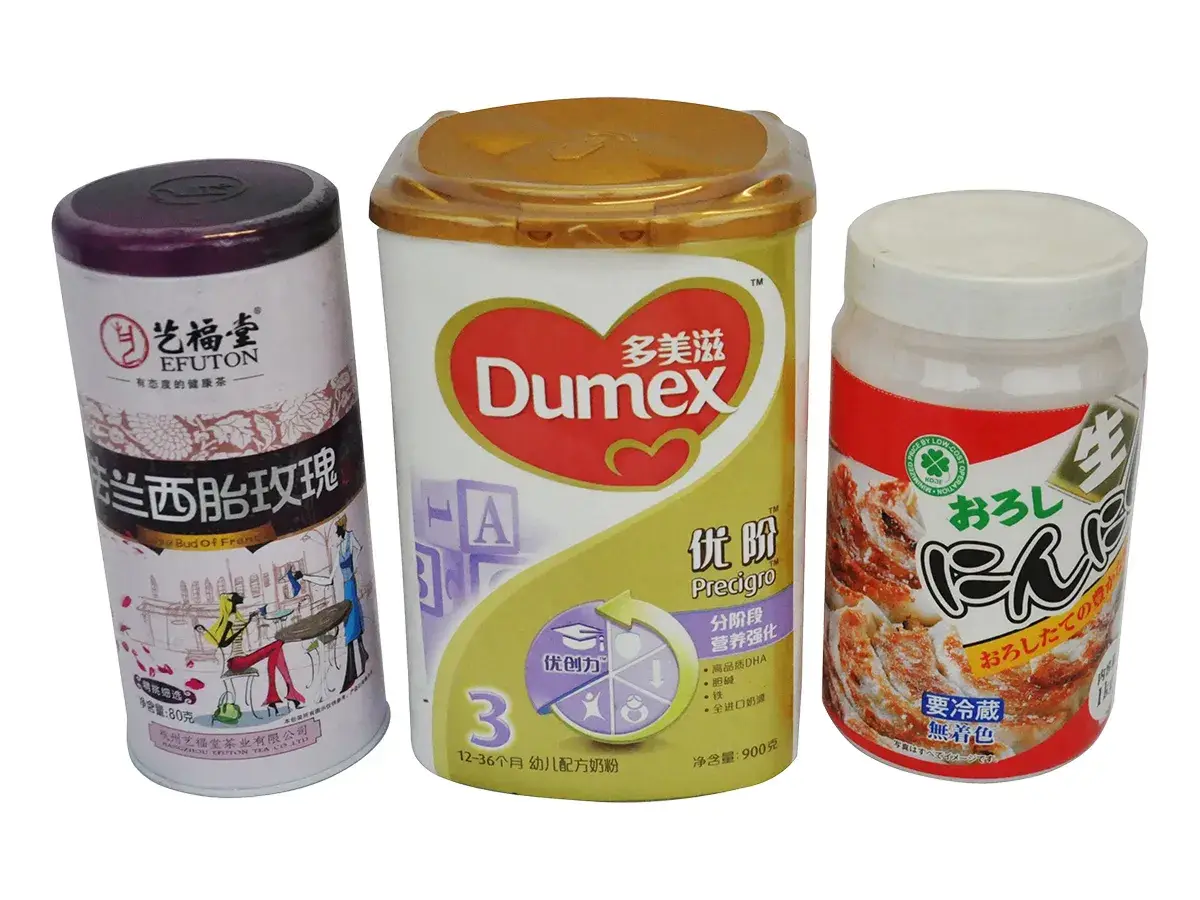

Applications
- Food and beverage packaging
- Household products
- Pharmaceutical packaging
- Personal care products
- Other products requiring decorative sleeves or tamper-evident bands
Technical Specifications
| Max. Speed | 15000 containers/h |
| Container Diameter Range | Ø25–125 mm (Customizable) |
| Standard Container Height | Approx. 350 mm (Customizable) |
| Sleeve Applications | Full-body sleeves, partial sleeves, overall sleeves, shoulder sleeves and cap seals |
| Container Materials | PET, PVC, glass, metal, HDPE, PP, PS |
| Shrink Film Materials | PVC, PET and OPS |
| Film Thickness | 0.03–0.08 mm |
| Standard Sleeve Length | Approx. 25–280 mm (Longer lengths require confirmation) |
| Cutting Knife Range | Ø25–50 mm / Ø51–95 mm / Ø96–125 mm (Customizable) |
| Voltage | 3 Phase / 380 V (Customizable) |
| Power Consumption | 3.5 kW |
| Compressed Air Requirement | None |
| Roll Core Diameter | 5"–10" |
| Frame Material | SUS304 stainless steel |
| Machine Dimensions | 1,000 mm (L) × 900 mm (W) × 1,900 mm (H) |
| Net Weight | Approx. 550 kg |
Features
- These sleeve labelers can process containers with diameters from 25–125 mm, and special sizes can be customized.
- The main frame and protective parts are made of SUS304 stainless steel, with a 2.5 mm stainless-steel conveyor frame for stable container transfer
- Servo motors are used for the sleeve brushing unit and film feeding system, keeping film feeding and sleeve application stable during operation. The position display shows clamping data in real time.
- Dual film rollers, damping springs and buffer structures help keep film feeding smooth during operation.
- Two photoelectric sensors check sleeve application during operation and send alarms when an issue is detected.
Optional Configurations
- Container spacing is available with single-screw, dual-screw or screw-and-guide configurations.
- The cutting unit can be equipped with a traditional multi-blade design or a servo-controlled single-blade design, depending on the required cutting precision and budget.
- The height adjustment system is available with servo motor control or standard motor control.
