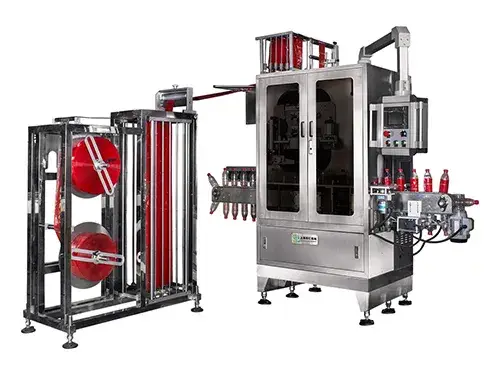

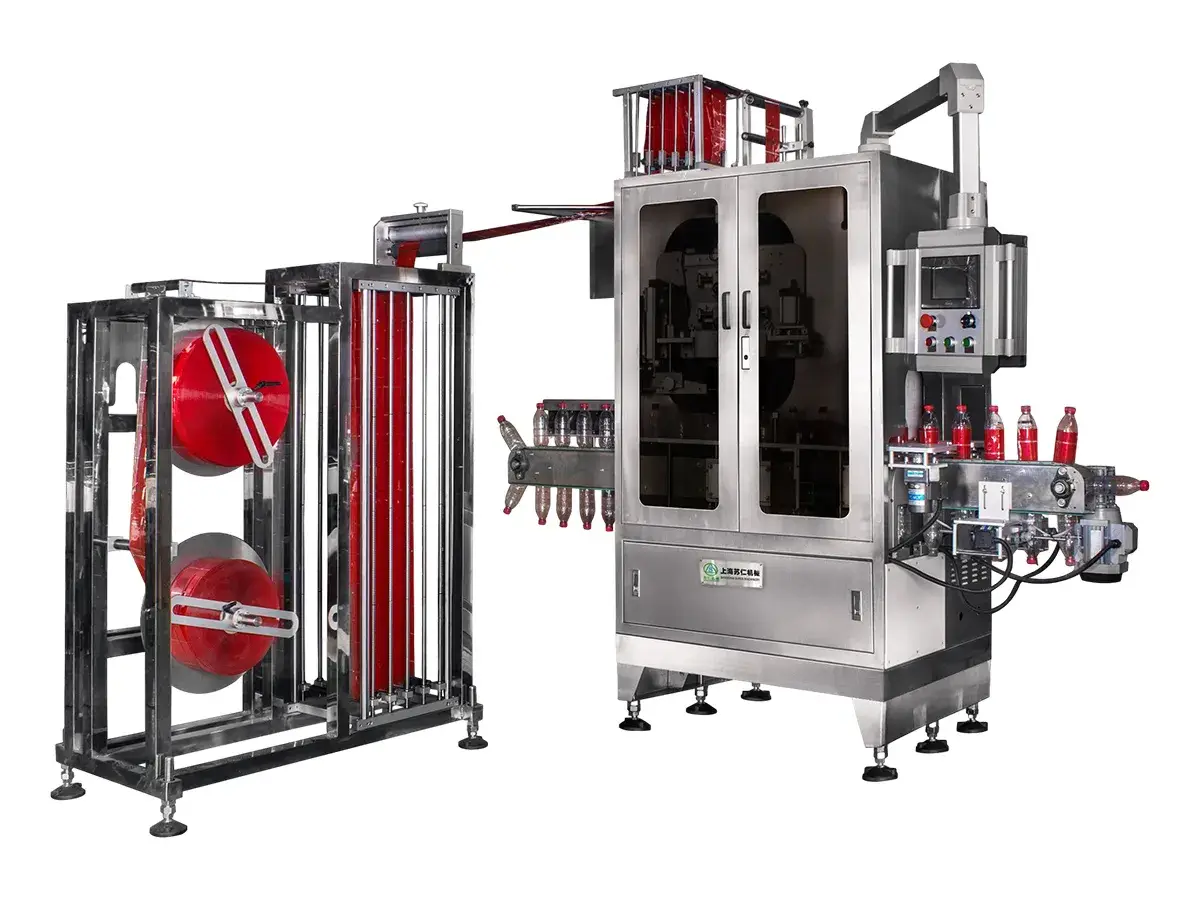

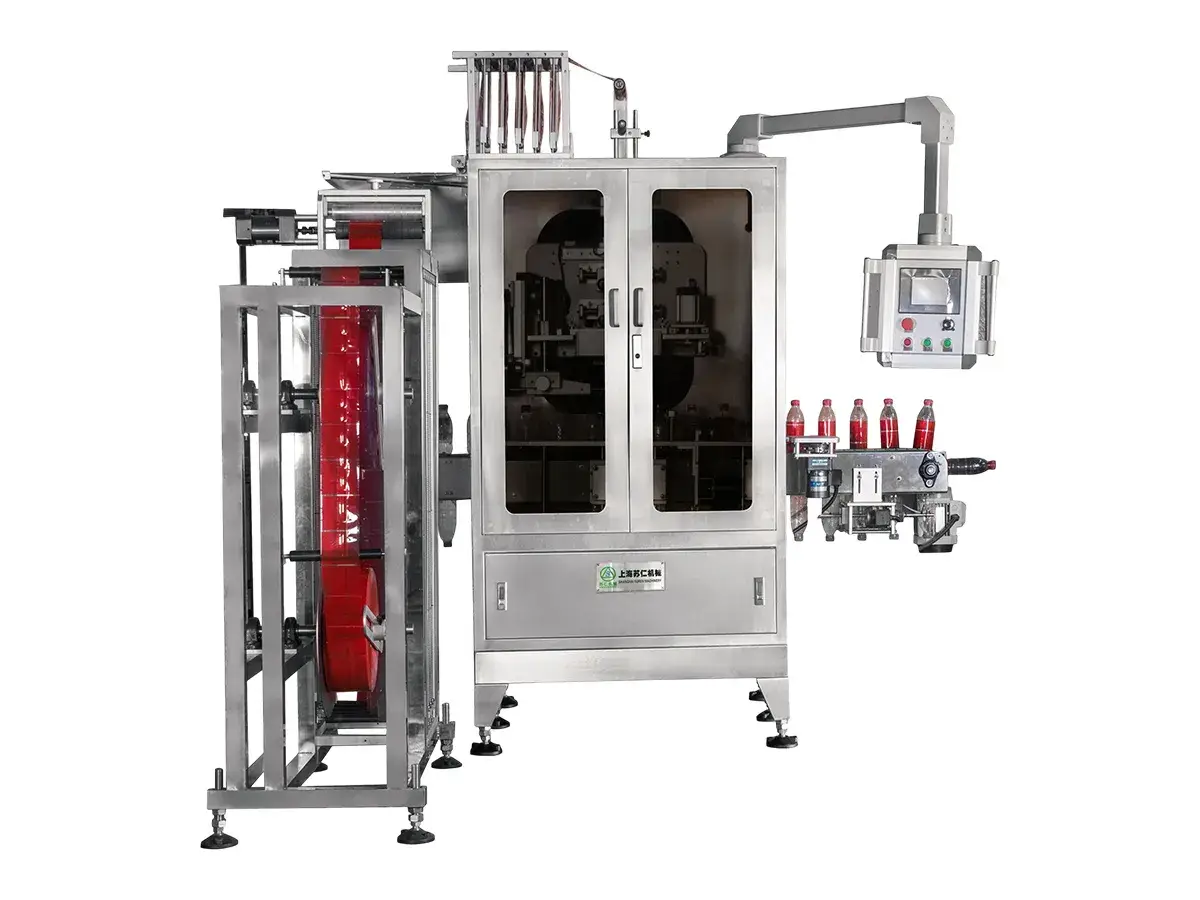

SRL-600 Tamper Evident Shrink Sleeve Applicator

These shrink sleeve labelers apply 360-degree sleeves at speeds of up to 600 containers per minute. Their servo control system maintains accurate sleeve placement during high-speed operation, while automatic inspection monitors the labeling process and the quick-change design shortens setup time between products. They can also be connected to existing packaging lines and paired with either an electric or steam shrink tunnel.

  • Max. Speed: 36,000 containers/h
  • Container Diameter Range: Ø25–125 mm (Customizable)
  • Maximum Container Height: 350 mm (Other heights can be customized)
  • Roll Core Diameter: 5"–10"
  • Shrink Film Materials: PVC, PET and OPS
Request a Quote
Watch Videos
Applications

Suitable for glass, PET, HDPE and PP containers used across various industries, including:

  • Food and Beverage
  • Household Products
  • Pharmaceuticals
  • Wine and Spirits
  • Tamper Evident Shrink Sleeve Applicator
  • Tamper Evident Shrink Sleeve Applicator
  • Tamper Evident Shrink Sleeve Applicator
Technical Specifications
Maximum Speed 600 containers/min (36000 containers/h)
Container Diameter Range Ø25–125 mm
Maximum Container Height 350 mm (Other heights can be customized)
Sleeve Length Range 25–280 mm (Custom lengths available)
Film Thickness 0.035–0.13 mm
Shrink Film Materials PVC, PET and OPS
Roll Core Diameter Adjustable from 5" to 10"
Shrink Tunnel Options Electric or steam
Power Supply 3-phase AC, 220 V / 380 V
Power Consumption 5.5 kW
Machine Frame Material SUS304 stainless steel
Features
  • These sleeve labelers can be connected directly to existing production lines for continuous operation.
  • The cutting unit covers the standard size range without changing the blade plate.
  • Size changes require no tools, and the film holder adjusts for 5-inch and 10-inch roll cores.
  • The positive-feed system can run film as thin as 0.035 mm.
  • An integrated transmission adjustment makes sleeve size changes faster and reduces downtime.
  • Suitable for round and square containers with PVC, PET and OPS films after simple setup changes.
  • The sleeve applicator can be tilted for straight containers that are difficult to sleeve in the standard vertical position.
  • The high-speed registration sensor can be adjusted to detect the print mark and control the cutting position accurately.
